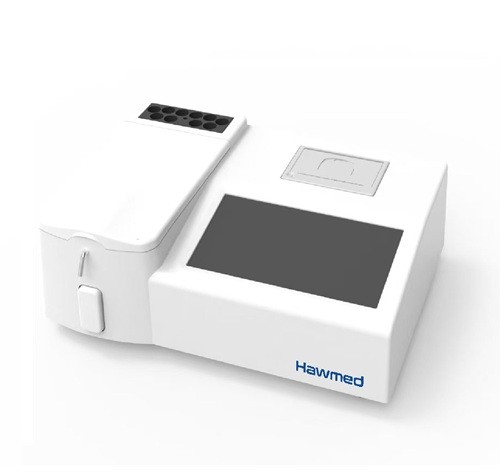

Hawmed HM100 Semi Auto Chemistry Analyzer

Multiple uses

Covering biochemical, cardiac, electrolyte and other functions.

Easy to operate

No training is required and can be operated by non-specialist physicians.

Portable design

The instrument weighs only 4.2Kg, takes up less space

Maintenance free

The key components are imported, no internal liquid circuit, pump valve and

other wearing parts,two-year warranty, free lifetime maintenance.

Principle of Detection

Absorption Spectroscopy Colorimetric Method ,Trans-mission Turbidimetric Method

Measurement Mode

Flow Colorimetric Cell (Stainless Steel Quartz Window, 32uI)

Storage

Can store > 3000 Sample Test Results

> 21000 Quality Control Results

> 2200 Test Item Parameters

Analysis Method

Endpoint Method,Rate Method,Two-point Method

Reaction Temperature

25℃, 30℃, 37℃ and Room Temperature;

Ten incubation well positions For Optional incubation accuracy 37+0.1℃

Wavelength Range

7 Wavelengths, With Wavelengths of 340,405,492, 510, 546, 578, 630(nm) Respectively

Light Source

12V/20W, Halogen Lamp With A Lifespan Of Over 2500 Hours

Human-Computer Interaction

7-inch,Multi-point Capacitive Touch Screen, Multi Language Selection

Interface

One Ethernet port For Lis connection, and Two USB support connections to keyboards, mice, external printers and burning for upper computer
