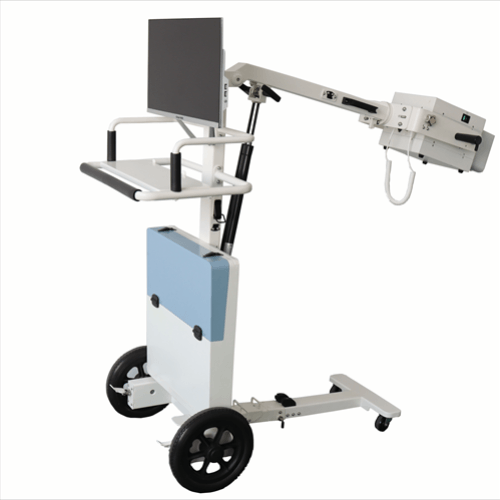

HMP Series Mobile Digital Radiography System

Relative humidity

30％～75％

Atmospheric

70～106kPa

Frequency

≧30KHZ

Current

10～140mA

Voltage

40～120KV

mAs

0.2～100mAs

Exposure time

2-2000ms

Intelligent protection system

It has self-protection system. It will give an alarm and check fault code.

Power type

220v±10% 50Hz/60Hz

Scintillator

Cesium Iodide

Active Area

14x17Inch

Pixel Matrix

2304 × 2800

Pixel Pitch

150um

A/D Conversion

16bits

DQE

≧70%

Spatial Resolution

3.4Lp/mm

Acquisition time

≤2S

Battery Autonomy (h)

5

WIFI

2.4G and 5G  IEEE802.11 a/b/g/n/ac

Ingress Protection

IPX1

Max. Window

440mm×440mm（SID=100cm）

Lamp

AC/DC24V、5W

Lamp timer

Automatic illumination with timer for lamp(30S)

Inherent filtration

1.0mmAl

Illuminant

LED

CPU

≥2.0GHz

Memory

≥8GB

HDD

≥500GB

DICOM3.0

Query for integration with any PACS

Functions

Image acquisition function

Automatically obtain patient information from the hospital's HIS system or RIS system or establish local medical records.

Setting of exposure parameters: setting of kV, mA, mAs and ms.

Image processing function

Automatic window width and window level adjustment, ROI window width and window level adjustment, gray scale transformation, and parallel display of single or multiple images

Image zooming function: most suitable for image, zoom in, zoom out, local zoom in and actual size

Image rollover: left and right rollover, up and down rollover, 90° rollover

Image filtering: noise reduction, bone level, tissue details, contrast, etc.

Marking function: text marking, arrow and other marking and deletion

Image measurement: linear measurement, Angle measurement and rectangle measurement

Image adjustment: window level gain, window width gain, grayscale stretch, negative reversal, sharpening, enhancement strength, etc.

Other functions: image movement, label selection, image clipping and other functions.

Image management function

DICOM function and database management: the system supports the standard DICOM3.0 function, which can transfer data to other medical imaging workstations.

Case management function

Medical records can be stored, retrieved and inquired, and cases can be deleted, cleaned and browsed.

Function of printing diagnostic report: the function of printing diagnostic report is added. The built-in diagnostic report template and knowledge base of the system can output integrated report of text and text.
